PIA Internal Corner

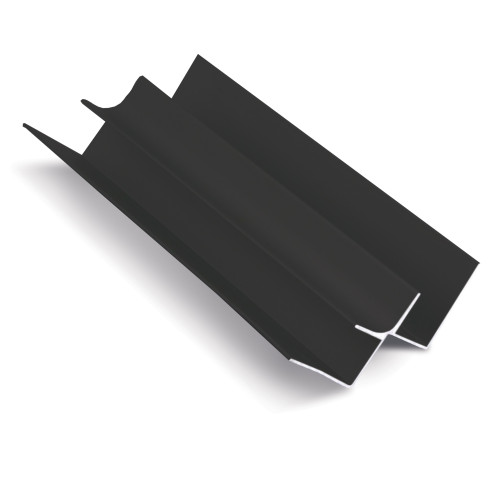

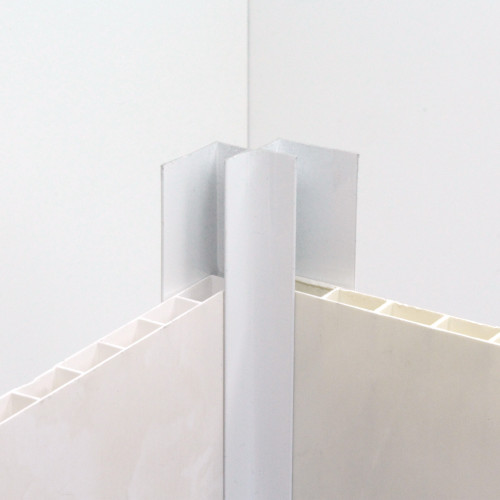

The Genesis PIA Internal corner joint is an aluminium profile that is used on the internal corner of paneling.

Available in bespoke powder coating to any RAL number on request.

Product
Length (m) 2.4
Box Quantity 25
Depth (mm) 11.5
Title
PIA Datasheet PIA Datasheet
  1. Start the panelling in the corner furthest from the door and panel in both directions.
  2. Fix an external corner trim in position, ensuring this is plumb. Apply a silicone sealant to the groove of the trim and adhesive to the battens or substrate.
  3. Insert the first panel into the grove of the trim, you will first need to remove the smaller tongue. Continue to fix panels away from the corner, ensuring to seal all joints with a sealant. Allow 3mm expansion gaps within the trims.
  4. Continue the panelling as required, using the necessary trims.
