EAM - Aluminium Slim Square Trim

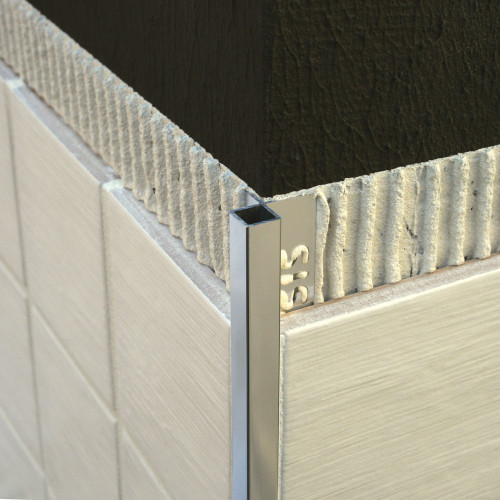

Genesis EAM Profile is a four sided square profile. Designed to protect the edge of mosaic, ceramic or similar hard surface in wall or floor installations - Perfect for mosaic or other smaller format ceramic tiles. The suitability of aluminium must be determined if Chemical or mechanical stresses are anticipated.

Available in bespoke powder coating to any RAL number on request.

Product
W x D (mm) 11x10
Length (m) 2.5
Box Quantity 20
Title
EAM Datasheet EAM Datasheet

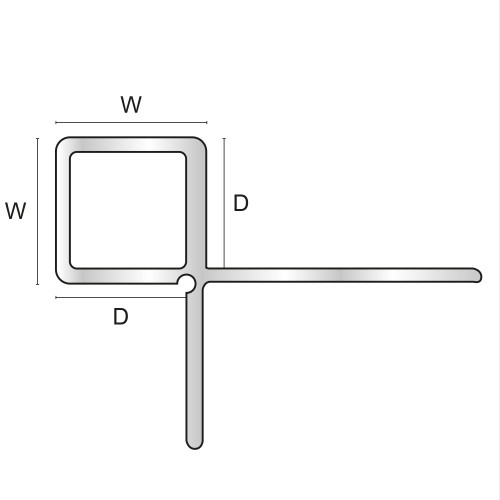

EAM Drawing EAM Drawing
  1. Select EAM according to tile thickness.
  2. Trowel tile adhesive over the area that forms the perimeter of the tiled covering.
  3. Press the perforated anchoring leg of the EAM, into the tile adhesive and align, mechanical fix if required.
  4. Trowel additional adhesive over the perforated anchoring leg to ensure full coverage.
  5.  Solidly embed the tiles so that the tiled surface is flush with the top of the profile, this profile should not be higher than the tiled surface, but rather up to approx. 1mm lower.
  6. Fill the joint completely with grout.
