NRE05

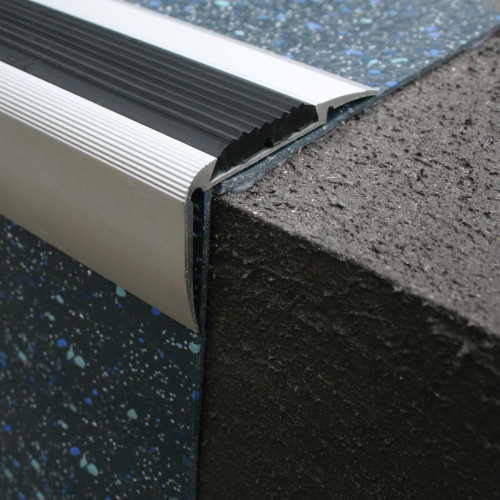

Genesis NRE profile is a strong well designed, innovative Aluminium profile designed to provide a simple, safe secure edge for steps

The Anodised Silver profile sits on top of the floor covering providing a perfect step edge with a grooved 25mm wide insert offering additional grip, the ramp offers a degree of movement allowing it to fit over Vinyl / LVT.

The channel is supplied pre-drilled and countersunk at 180mm centres with fixing plugs and DIN 7050 M3.5 x 25mm screws for Mechanical fixing, once installed the insert can be easily applied concealing the screw heads.

Product
W x D (mm) 57 x 33
Length (m) 2.77
Box Quantity 10
Title
NRE05 Datasheet NRE05 Datasheet
  1. Check the fit of the nosing and ensure that the profile is firmly placed against the riser of the step, if required mark the floor.
  2. Drill the sub floor and plug accordingly.(If screw fixing is desired)
  3. Apply any contact grade adhesive to the bottom of the profile and to the tread where the nosing is to be fixed.
  4. Place the nosing in position and mechanically fix.
  5. Apply insert to channel to conceal fixing.
